MAKIBEE™

Wrap-type fire-proofing covering materials for beams

TOMBO™ No. 5520

Nichias has increased the density of the wrap-type, fire-proofing covering material MAKIBEE™ and made it even more compact!
Use it for 2 or 3-hour fire resistance for steel beams in offices, shops, warehouses, and entertainment complexes.

Product Category

Building Materials(For Residential Housing/Non-Residential)Wrap-Type Fireproofing Covering Materials

Industry

Residential Housing & Non-ResidentialBuilding (Non-Residential) ConstructionWarehouses

Forte

Able to reduce the thickness of 2-hour and 3-hour fireproof covering materials for steel beams.

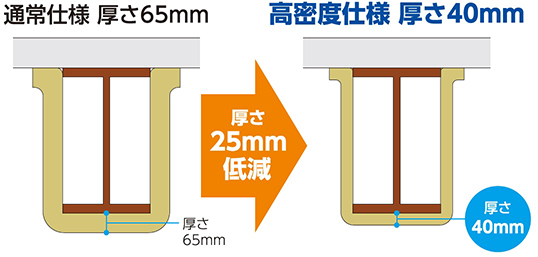

Nichias has reduced the thickness of the 25 mm model by about 40% (40 mm ⇒ 25 mm) and, likewise, the thickness of the 40 mm model has been reduced by about 40% (65 mm ⇒ 40 mm).
It is a product that makes the area above the ceiling more spacious and improves workability.

Specification

For details, please see the MAKIBEE page.

	Thickness [mm]	Density [kg/m³]	Standard dimensions [mm] [Width (working width) × length]
High-density specification	25	120	925 (915) ×8, 000
High-density specification	40	120	925 (895) ×, 5000
Regular specifications	20	100	925 (915) ×10, 000
	40	100	925 (915) ×6, 000
	65	110	925 (895) ×3, 300

*The median of the standard is included for the product density.

For information on the fireproof cover certification and non-flammable certification, see the main certifications list.

Fireproof structure certified

Fire-resistant for 2 hours

Thickness [mm]	Fire resistance certification number	Steel frame dimensions^* [mm]
40	FP120BM-0634	H-350 × 175 × 7 × 11 or more

*For further details, please contact us.

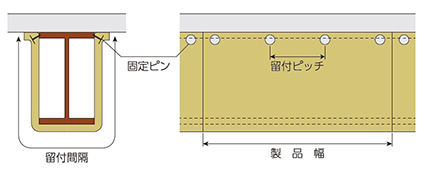

Fastening interval (rolling direction) = 2, 440 mm or less
Fastening pitch (product width direction) = 300 mm or less

Thickness [mm]	Fire resistance certification number	Steel frame dimensions^{Note 1} [mm]
25	FP120BM-0481	H-300 × 200 × 12 × 22 or more and (2H + B) / A ≤ 76.5 m^{- 1}^{Note 2}

Note 1: This can be applied only to the steel frame dimensions below the cross-section shape factor in the certificate. For further details, please contact us.

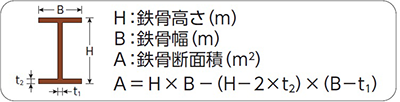

Note 2:

What is the size of the steel frame applied to the high-density specifications?
Page for determining the steel frame dimensions to be applied

Fire-resistant for 3 hours

Thickness [mm]	Fire resistance certification number	Steel frame dimensions^{Note 3} [mm]
40	FP180BM-0021	H-588 × 300 × 12 × 20 or more

Note 3: It is currently affixed on three surfaces, but Nichias is in the process of acquiring fire resistance certification for a single affixed sheet. For further details, please contact us.

Other

TOMBO is a registered trademark or trademark of NICHIAS Corporation.
Name of products with "®" are registered trademarks of NICHIAS Corporation.
Name of products with "™" are trademarks of NICHIAS Corporation.
